Cooling & Brake Line Brackets

Lightweight brackets designed to enable clean and secure mounting of fluid lines.

Cooling line bracket — CAD render

FIG. 01A — NL

[ COOLING CAD RENDER ] Save image as images/cooling-cad.png

Brake line bracket — CAD render

FIG. 01B — NL

[ BRAKE CAD RENDER ] Save image as images/brake-cad.png

Role Drivetrain Engineer

Team MRacing FSAE

Tools Siemens NX · 3D Printing

Status Completed

01

Cooling Line Bracket

Lightweight mount for MR26's cooling lines

Bonded to chassis and secured to lines via zip-tie
Rounded walls extend beyond midline to hold lines more effectively
3D printed for mass reduction and cost savings
Used throughout car for clean and secure routing

STEP file — Cooling bracket

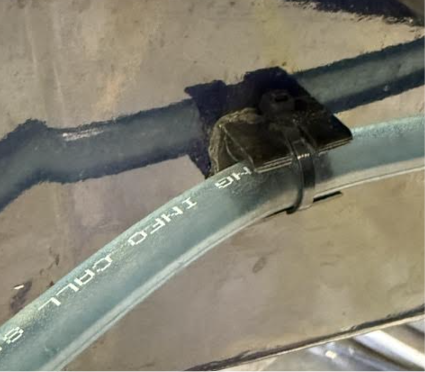

Cooling line bracket installed on MR26

FIG. 02 — NL

[ COOLING BRACKET INSTALLED ]Save as images/cooling-installed.png

02

Brake Line Bracket

Higher load bearing bracket designed for stiffer brake lines

Secures hard brake lines inside chassis
Widened base adds surface area to strengthen bond with chassis
Walls flattened at midline to allow stiffer lines to be inserted
Keeps lines clear of pedal box and driver's feet

STEP file — Brake bracket

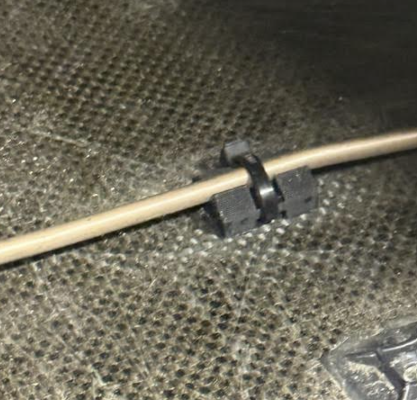

Brake line bracket installed on MR26

FIG. 03 — NL

[ BRAKE BRACKET INSTALLED ]Save as images/brake-installed.png
